Basic Troubleshooting Guide

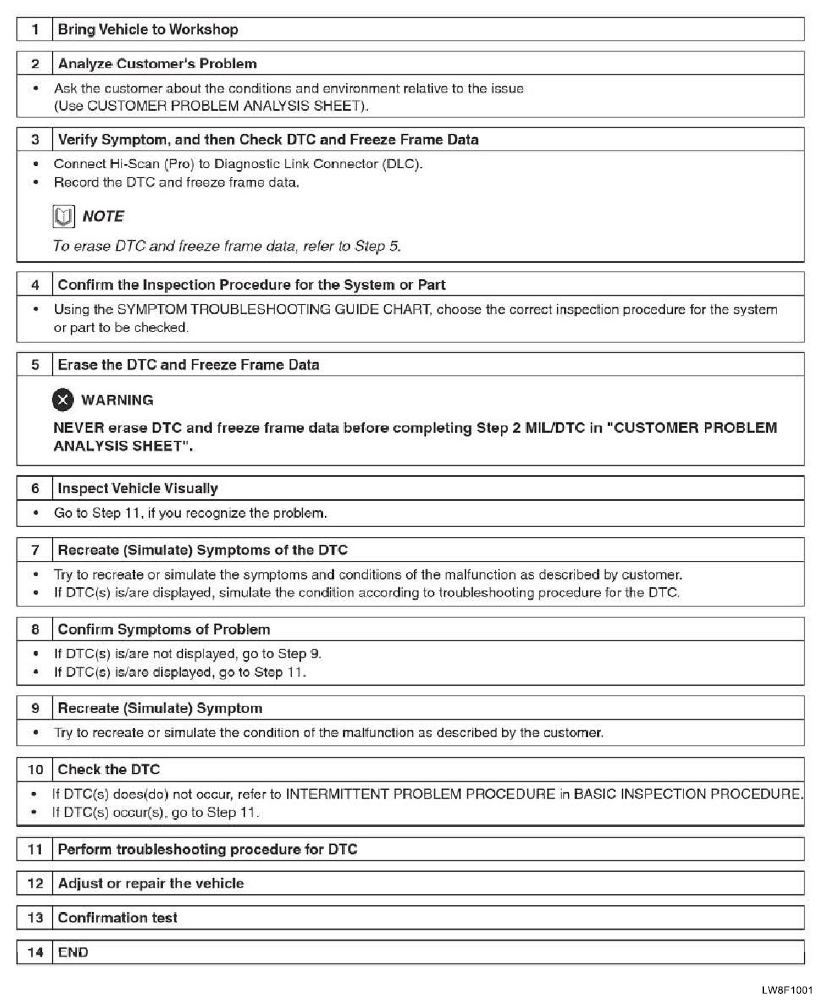

Fig 1: Basic Troubleshooting Guide Lines
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
