General Information (Fuel System) - 2.4L
>>
Basic troubleshooting
>>
Basic troubleshooting guide
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Basic troubleshooting guide

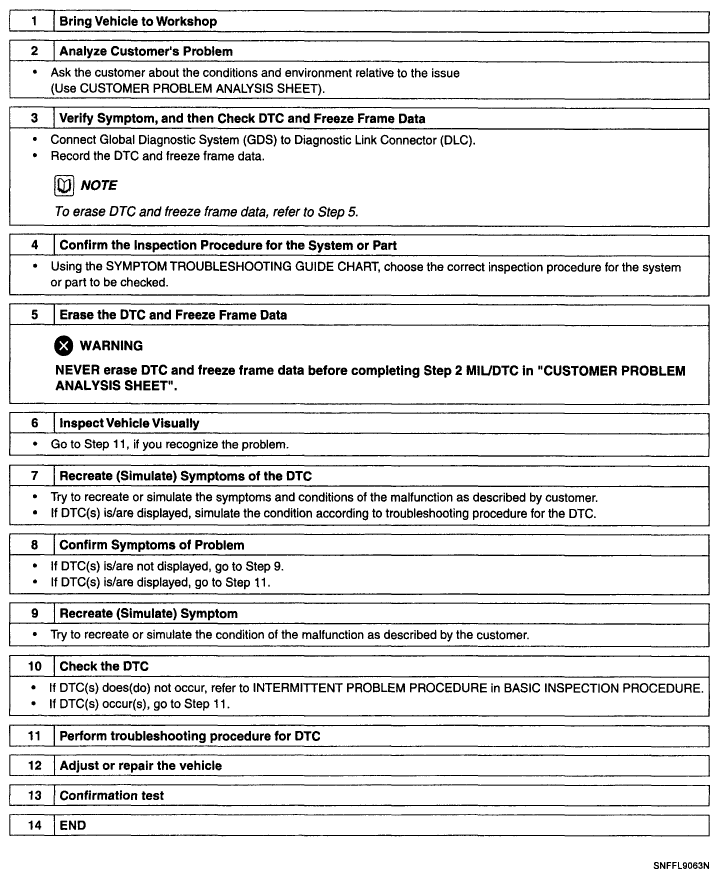

Fig 1: Identifying Basic Troubleshooting Guide
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
