Sonata GLS, 3.3 F
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (Fuel System) - 3.3L
>>
Accelerator Position Sensor (APS)
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

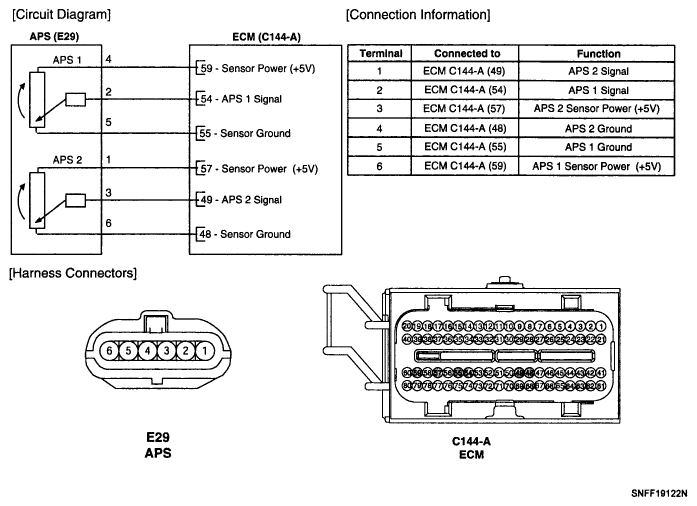

Fig 1: Accelerator Position Sensor (APS) - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
