Engine Control System (Fuel System) - 3.3L
>>
CVVT Oil Temperature Sensor (OTS)
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

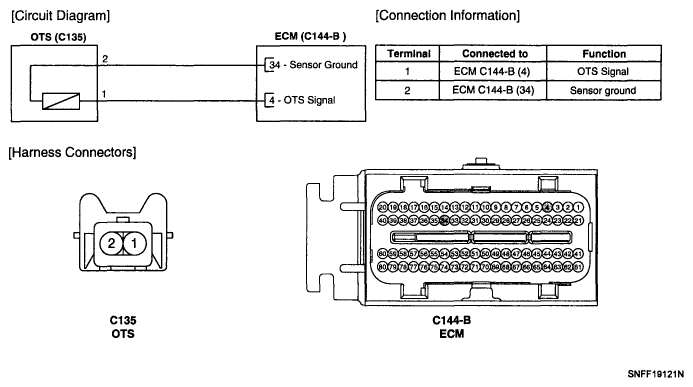

Fig 1: CVVT Oil Temperature Sensor (OTS) - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
