Engine Control Module (ECM): Replacement
- Turn ignition switch off.
- Disconnect the battery (-) cable from the battery.

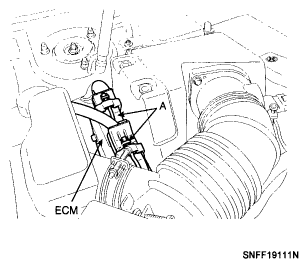

- Disconnect the ECM connectors (A).
- Unscrew the ECM mounting bolts (B) and remove the ECM from the air cleaner assembly.
- Install new ECM
ECM installation bolts : 9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
