VIN programming procedure

VIN (Vehicle Identification Number) is a number that has the vehicle's information (Maker, Vehicle Type, Vehicle Line/Series, Body Type, Engine Type, Transmission Type, Model Year, Plant Location and so forth. For more information, please refer to GENERAL INFORMATION (BODY (INTERIOR & EXTERIOR)) ). When replacing an PCM, the VIN must be programmed in the PCM. If there is no VIN in PCM memory, the fault code (DTC P0630) is set.

1. Select "Vehicle" and "Engine" (For example, TUCSON 2.0L L4).

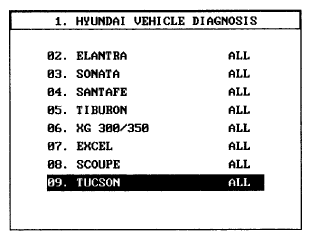

   Fig 1: Screen Display - Tucson

   Courtesy of HYUNDAI MOTOR CO.

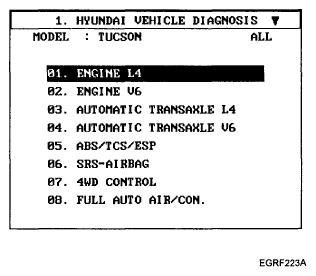

   Fig 2: Screen Display - Engine L4

   Courtesy of HYUNDAI MOTOR CO.
2. Select "VIN WRITING".
   Fig 3: Screen Display - VIN Writing

   Courtesy of HYUNDAI MOTOR CO.
3. Check the PCM status.
   Fig 4: Screen Display - VIN Writing

   Courtesy of HYUNDAI MOTOR CO.
   NOTE:

   • VIRGIN: VIN is not programmed
   • LEARNT: VIN has been already programmed

   Is the PCM status "VIRGIN"?

   YES

   • Go to next step 4.

   NO

   • END
4. Write the VIN with cursor, function and number keys.
   WARNING: Before pressing the "ENTER" key, confirm the VIN again because the programmed VIN cannot be changed.

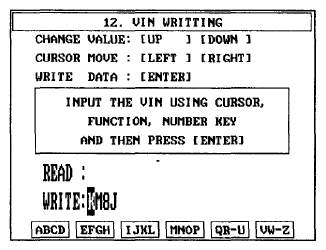

   Fig 5: Screen Display - VIN Writing (1 Of 2)

   Courtesy of HYUNDAI MOTOR CO.

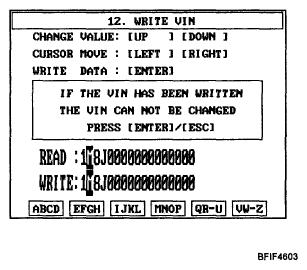

   Fig 6: Screen Display - VIN Writing (2 Of 2)

   Courtesy of HYUNDAI MOTOR CO.
5. After verifying the written VIN, press the "ENTER" key.
6. Turn the ignition switch OFF, and then turn ON.
   Fig 7: Screen Display - VIN Writing (1 Of 2)

   Courtesy of HYUNDAI MOTOR CO.
7. Verify the programmed VIN in the PCM memory.
