Engine Control System (Fuel System) - 3.3L
>>
Engine Coolant Temperature Sensor (ECTS)
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

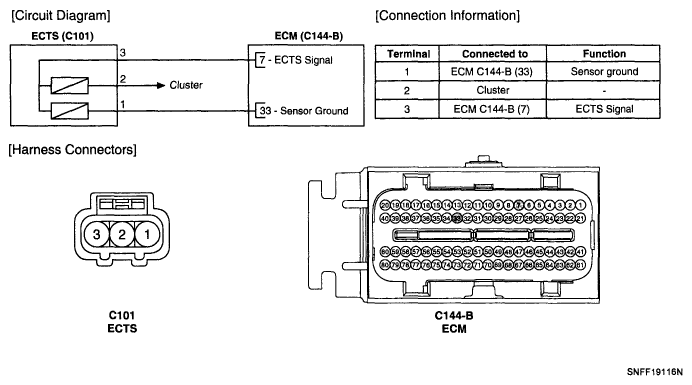

Fig 1: Engine Coolant Temperature Sensor (ECTS) - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
