Hyundai
>>
2009
>>
Sonata GLS, 3.3 F
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (Fuel System) - 3.3L
>>
Mass Air Flow Sensor (MAFS)
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

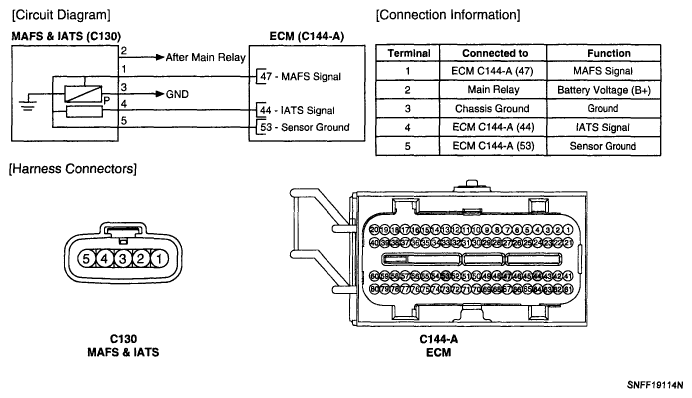

Fig 1: Mass Air Flow Sensor (MAFS) - Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
