Connecting Rod Bearing

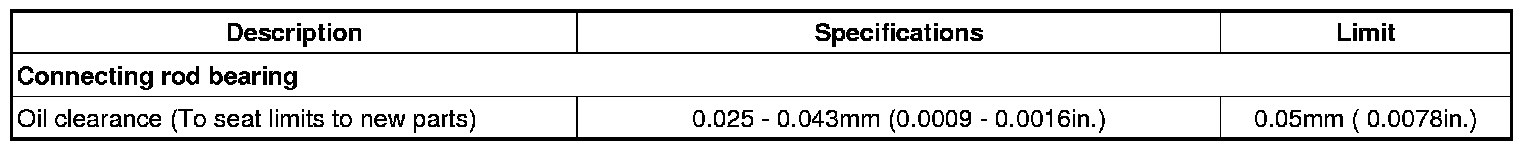

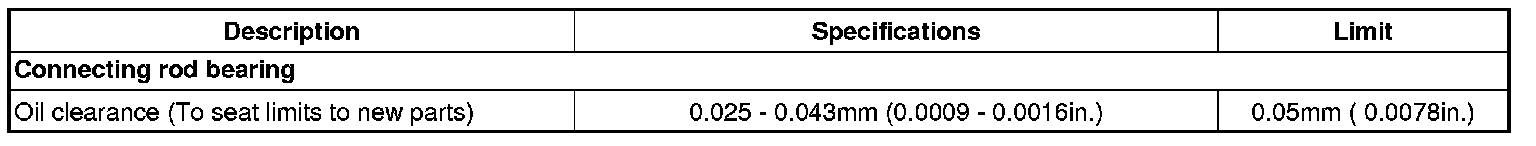

Connecting Rod Bearing Clearance











Connecting Rod Bearing Cap

Reinstall the bearing half and cap, and torque the bolts

Tightening torque 19.6 N.m (2.0 kgf.m, 14.46 lb-ft) + 90°
