Connecting Rod

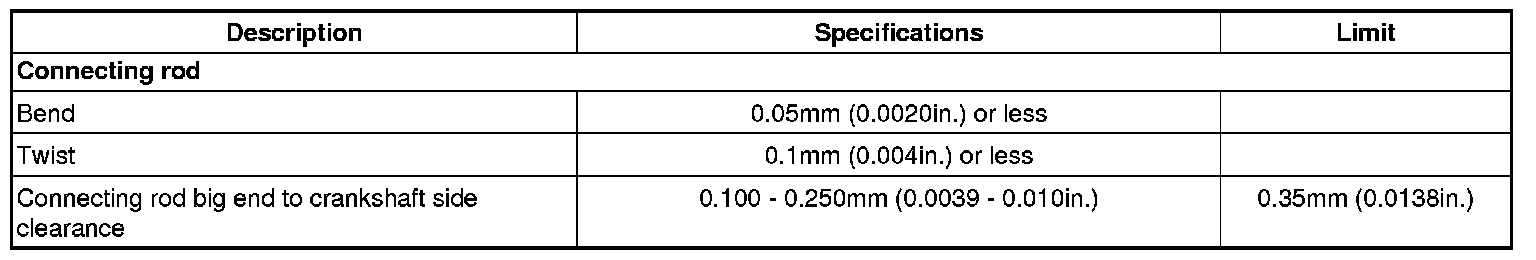

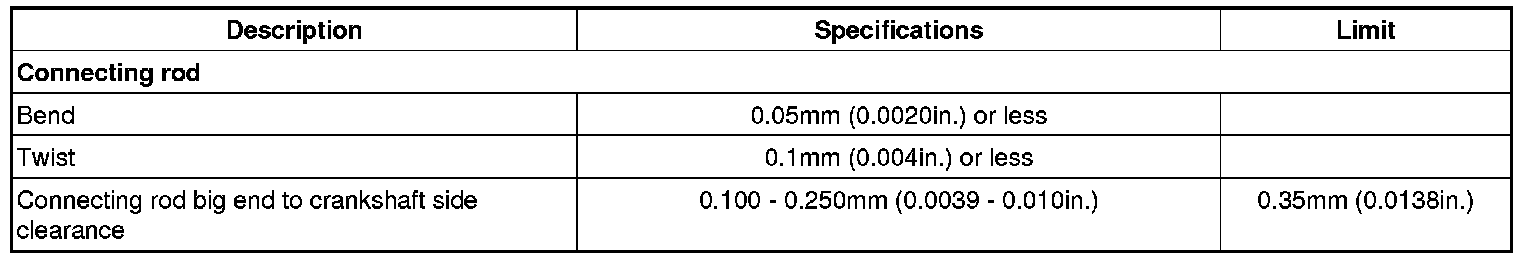

Connecting Rod
Standard end play
0.1 - 0.25 mm(0.004 - 0.010 in.)
Maximum end play
0.35 mm(0.0138 in.)
