Cylinder Block





Cylinder Block

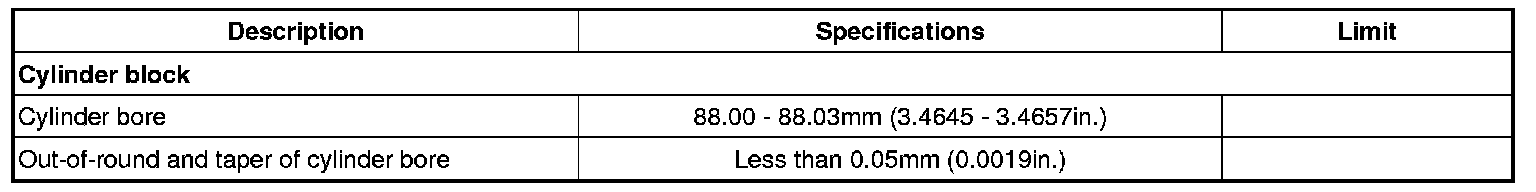

Cylinder Bore Diameter, Cylinder Taper, Cylinder Out of Round






Surface Variation

Flatness of cylinder block gasket surface
Standard Less than 0.05mm(0.0020 in.)
