Camshaft Position Sensor (CMPS): Waveform

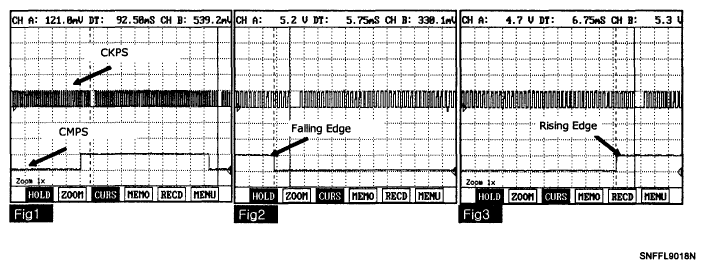

Fig 1: Identifying Signal Waveform

Courtesy of HYUNDAI MOTOR CO.

Fig.1) The square wave signal should be smooth and without any distortion.

Fig.2, 3) The CMPS falling (rising) edge is coincided with 3 ~5 tooth of the CKP from one longer signal (missing tooth)

Fig 1: Identifying Signal Waveform

Courtesy of HYUNDAI MOTOR CO.

Fig.1) The square wave signal should be smooth and without any distortion.

Fig.2, 3) The CMPS falling (rising) edge is coincided with 3~5 tooth of the CKP from one longer signal (missing tooth)
