Engine Control System (Fuel System) - 2.4L
>>
ETC (Electronic Throttle control) System
>>
Circuit diagram
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit diagram: Notes

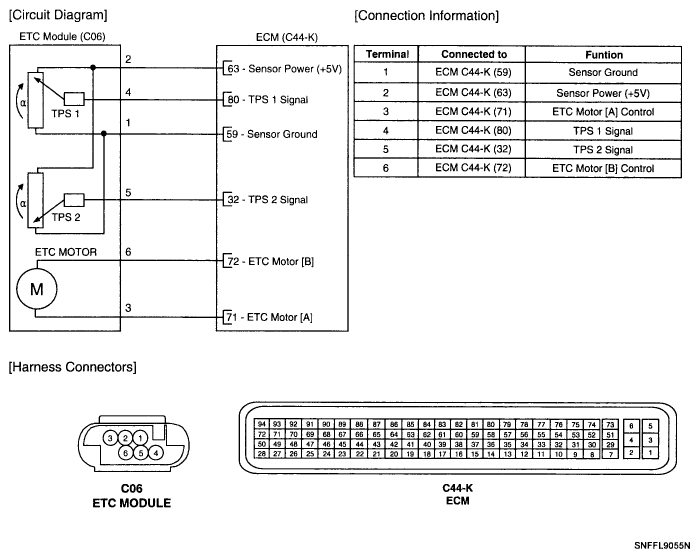

Fig 1: ETC Module And ECM Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
