Engine Control System (Fuel System) - 2.4L
>>
Injector
>>
Circuit diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit diagram

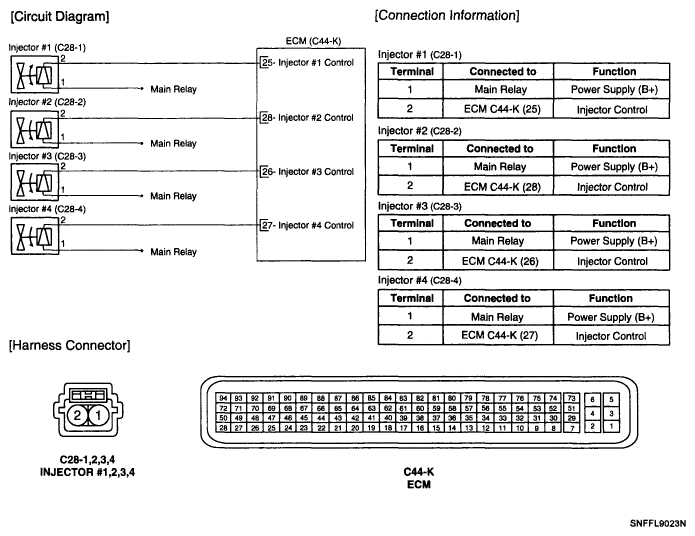

Fig 1: Identifying ECM And Injector Connector Terminal
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
