Engine Control System (Fuel System) - 2.4L
>>
Powertrain Control Module (PCM)
>>
Powertrain control module (PCM)
>>
1. PCM harness connector
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
1. PCM harness connector

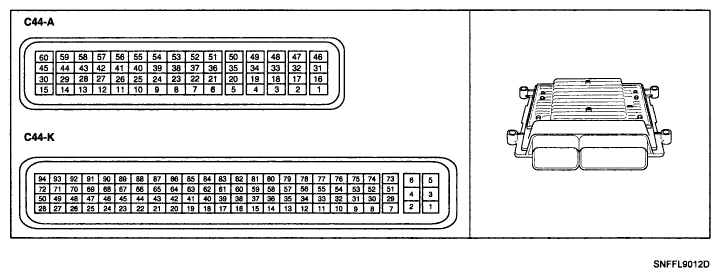

Fig 1: Identifying PCM Harness Connector Terminal
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
