Variable Charge Motion Actuator (VCMA): Components

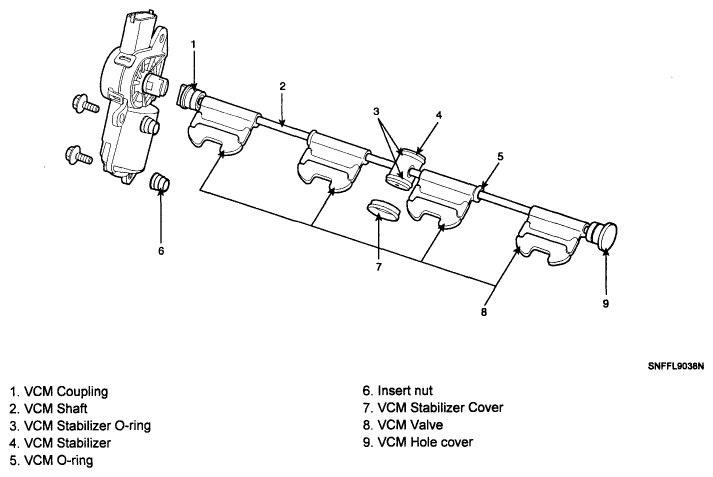

Fig 1: Identifying Variable Charge Motion Actuator Components Location
G06107533Courtesy of HYUNDAI MOTOR CO.
CAUTION: The VCM actuator has to be installed at the fully closing position of the VCM valve.
If it doesn't, the VCM coupling of the VCM shaft can't be put in the VCM actuator.
