Timing Cover

Timing Cover

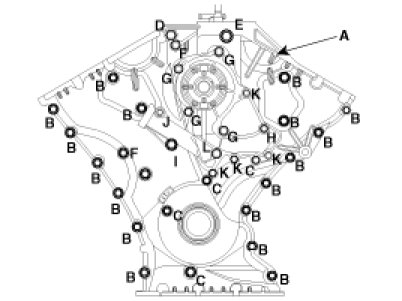

Tightening torque:
B(17) 18.62 - 21.56 N.m (1.9 - 2.2 kgf.m, 13.74 - 15.91 lb-ft)
C(4) 9.80 - 11.76 N.m (1.0 - 1.2 kgf.m, 7.23 - 8.68 lb-ft)
D(1) 58.80 - 68.80 N.m (6.0 - 7.0 kgf.m, 43.40 - 50.63 lb-ft)
E(1) 58.80 - 68.80 N.m (6.0 - 7.0 kgf.m, 43.40 - 50.63 lb-ft)
F(2) 24.50 - 26.46 N.m (2.5 - 2.7 kgf.m, 18.08 - 19.53 lb-ft)
G(4) 21.56 - 23.52 N.m (2.2 - 2.4 kgf.m, 15.91 - 17.36 lb-ft)
H(1) 9.80 - 11.76 N.m (1.0 - 1.2 kgf.m, 7.23 - 8.68 lb-ft)
I(1) 9.80 - 11.76 N.m (1.0 - 1.2 kgf.m, 7.23 - 8.68 lb-ft)
J(1) 9.80 - 11.76 N.m (1.0 - 1.2 kgf.m, 7.23 - 8.68 lb-ft)
K(4) 9.80 - 11.76 N.m (1.0 - 1.2 kgf.m, 7.23 - 8.68 lb-ft)
L(1) 21.56 - 26.46 N.m (2.2 - 2.7 kgf.m, 15.91 - 19.53lb-ft)
- New bolt
