Connecting Rod Bearing

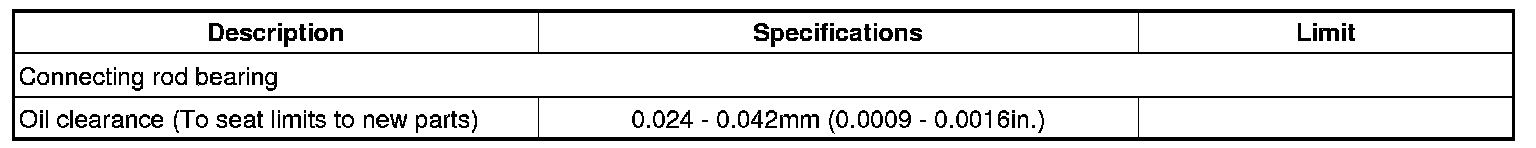

Connecting Rod Bearing Oil Clearance






Connecting Rod Bearing Cap

Reinstall the bearing half and cap, and torque the nuts.
Tightening torque 50 - 53 Nm (5.0 - 5.3 kgf.m, 36.9 - 39 lb-ft)
