Cylinder Head

NOTE: Head Bolts are reusable.

Cylinder Head

Install cylinder head bolts
(1) Apply a light coat if engine oil on the threads and under the heads of the cylinder head bolts.

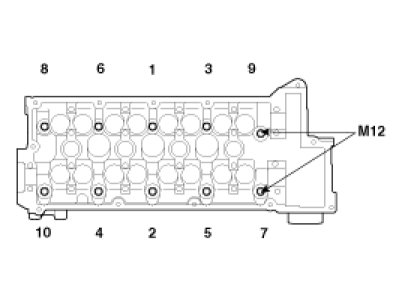

(2) Using 8mm and 10mm hexagon wrench, install and tighten the 10 cylinder head bolts and plate washers, in several passes, in the sequence shown.

Tightening torque
M10 25 Nm (2.5 kgf.m, 18 lb-ft) + (60° ~ 65°) + (60° ~ 65°)
M12 30 Nm (3.0 kgf.m, 22 lb-ft) + (60° ~ 65°) + (60° ~ 65°)
