Water Pump





Water Pump

Install the water pump.

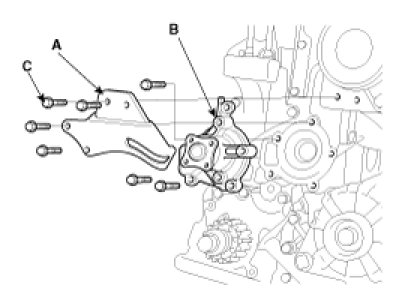

Install the water pump(B) and a new gasket with the 3 bolts.

Tightening torque 20 - 27 Nm (2.0 - 2.7 kgf.m, 15 - 20 lb-ft)
