Heater Control Unit Replacement





Heater Control Unit Replacement
1. Remove the audio assembly .

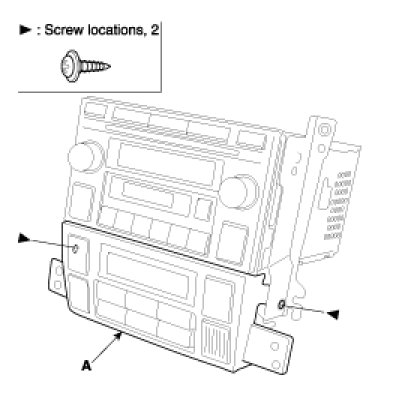

2. Loosen the screws.
3. Remove the heater control unit (A).




4. Installation is the reverse of removal.

NOTE:
Make sure the connector is plugged in properly.
