Crankshaft

Crankshaft Journal Diameter & Limits

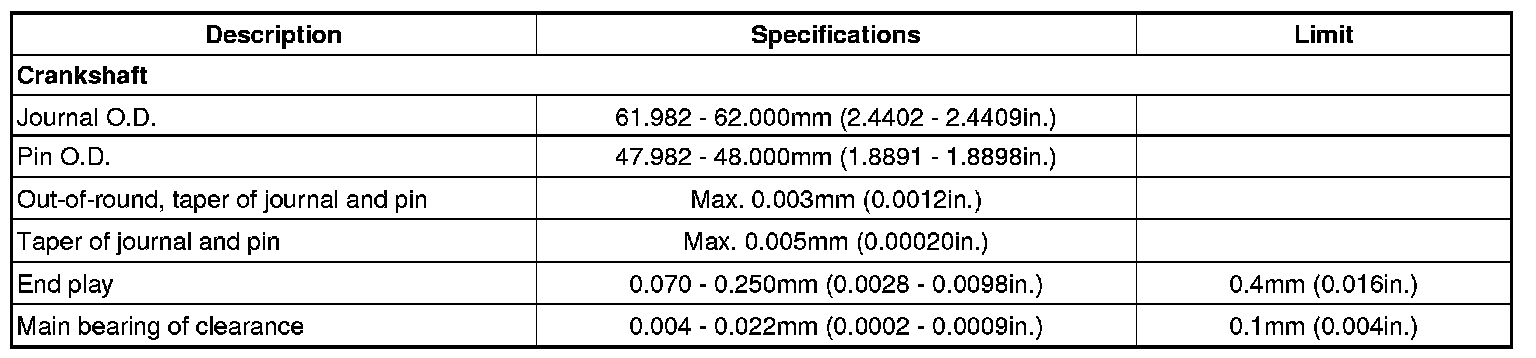

Crankshaft Specifications

Reinstall the bearings and caps, then torque the bolts.

Tightening torque
M8 13 - 19 Nm (1.3 - 1.9 kgf.m, 10 - 14 lb-ft) + (90°~95°)
M10 27 - 33 Nm (2.7 - 3.3 kgf.m, 19.5 - 24 lb-ft) + (90°~95°)

Check crankshaft end play

Standard end play 0.07 - 0.25 mm (0.0027 - 0.0098 in.)
Limit 0.30 mm (0.0118 in.)

Main journal diameter 61.982 - 62.000 mm (2.4402 - 2.4409 in.)
Crank pin diameter 47.982 - 48.000 mm (1.8890 - 1.8898 in.)
