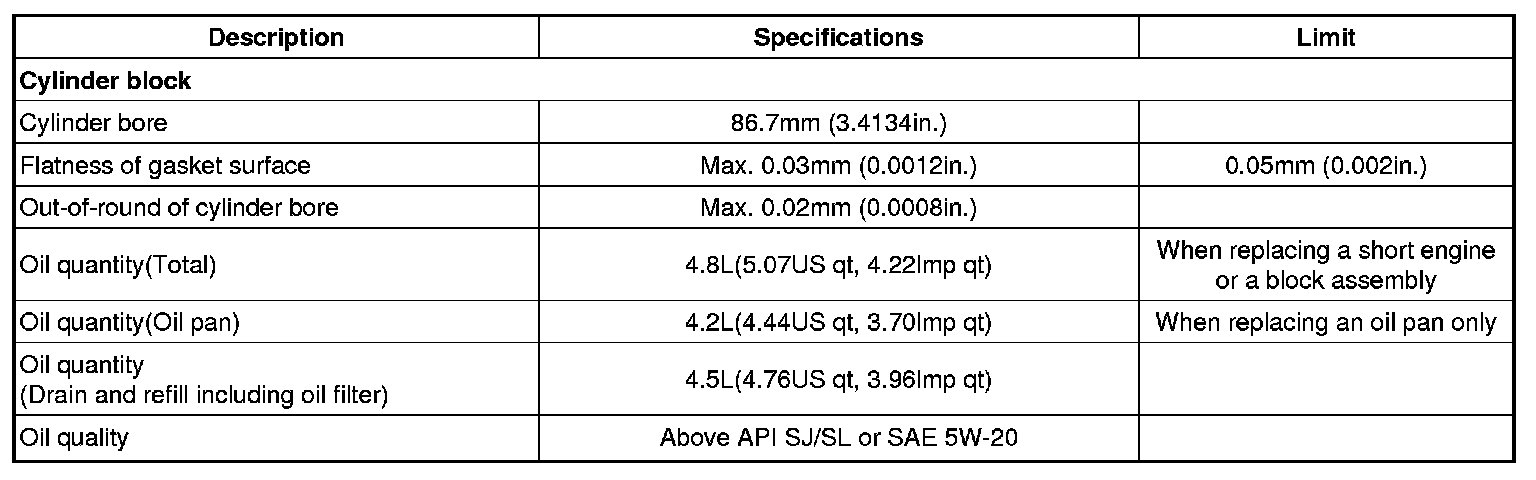

Cylinder Block
Cylinder Block
Surface Variation
Flatness of cylinder block gasket surface
Standard Less than 0.03 mm (0.0012 in.)
Limit 0.05 mm ( 0.0020 in.)
Cylinder Bore Diameter, Cylinder Taper, Cylinder Out of Round, Cylinder-to-Piston Clearance
Cylinder Block
Surface Variation
Flatness of cylinder block gasket surface
Standard Less than 0.03 mm (0.0012 in.)
Limit 0.05 mm ( 0.0020 in.)
Cylinder Bore Diameter, Cylinder Taper, Cylinder Out of Round, Cylinder-to-Piston Clearance
