Intake Manifold





Intake Manifold

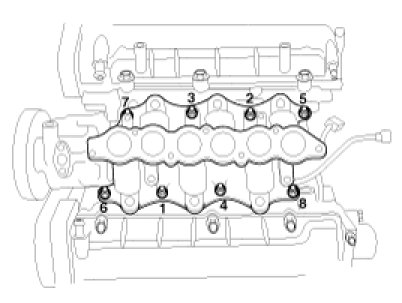

Install the intake manifold and gasket
Tightening torque 19 - 21 Nm (1.9 - 2.1 kgf.m, 14 - 15 lb-ft)
