Water Pump





Water Pump

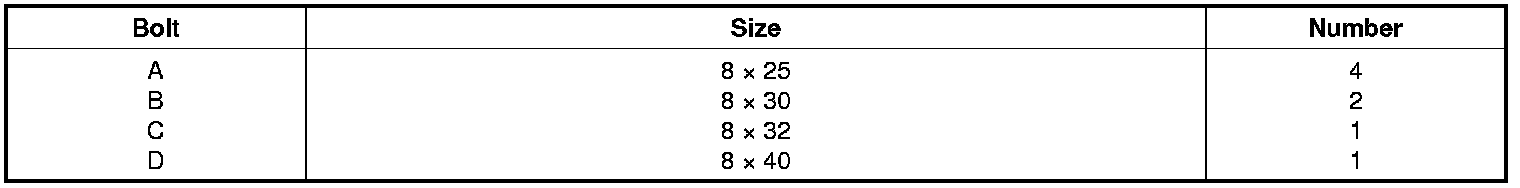

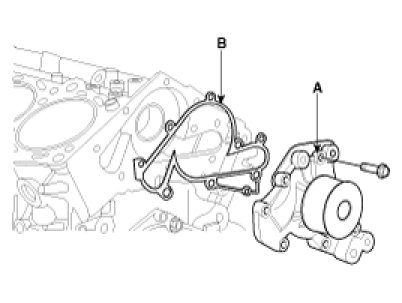

Install the water pump(A) and a new gasket(B) with the 8 bolts.
Tightening torque 15 - 22 Nm (1.5 - 2.2 kgf.m, 11 - 16 lb-ft)
