ESC (Electronic Stability Control) System: Components

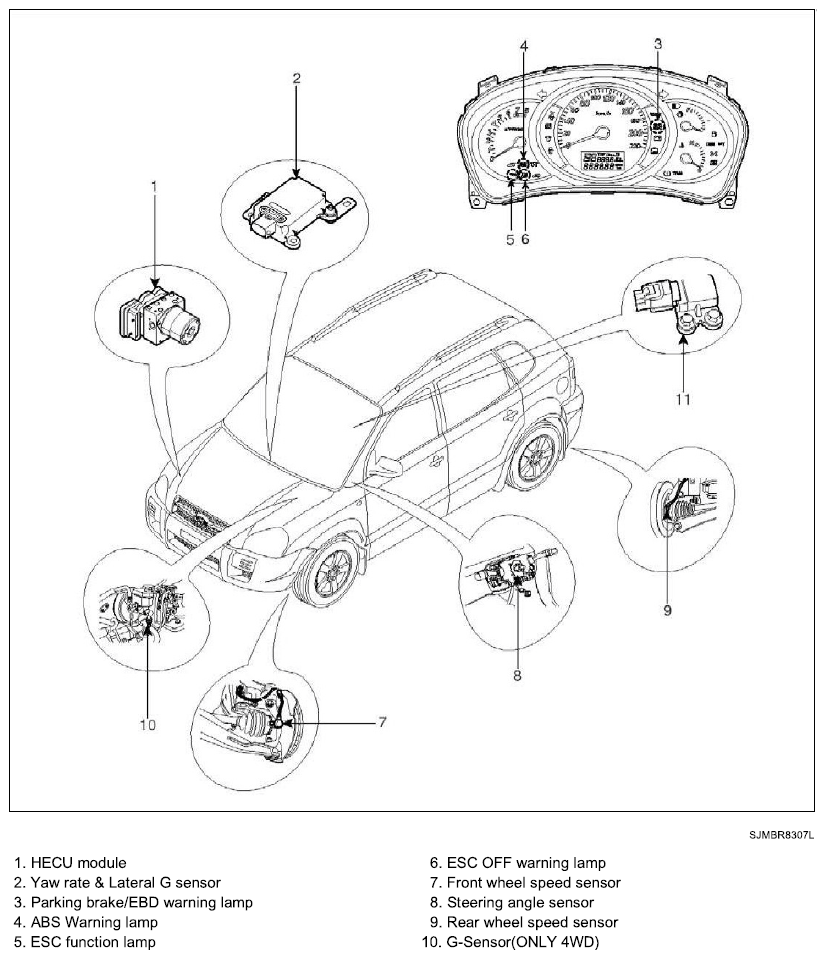

Fig 1: Identifying Electronic Stability Control System Component Location
G06207426Courtesy of HYUNDAI MOTOR CO.
