Charging System: Alternator: Components: (2.7L)

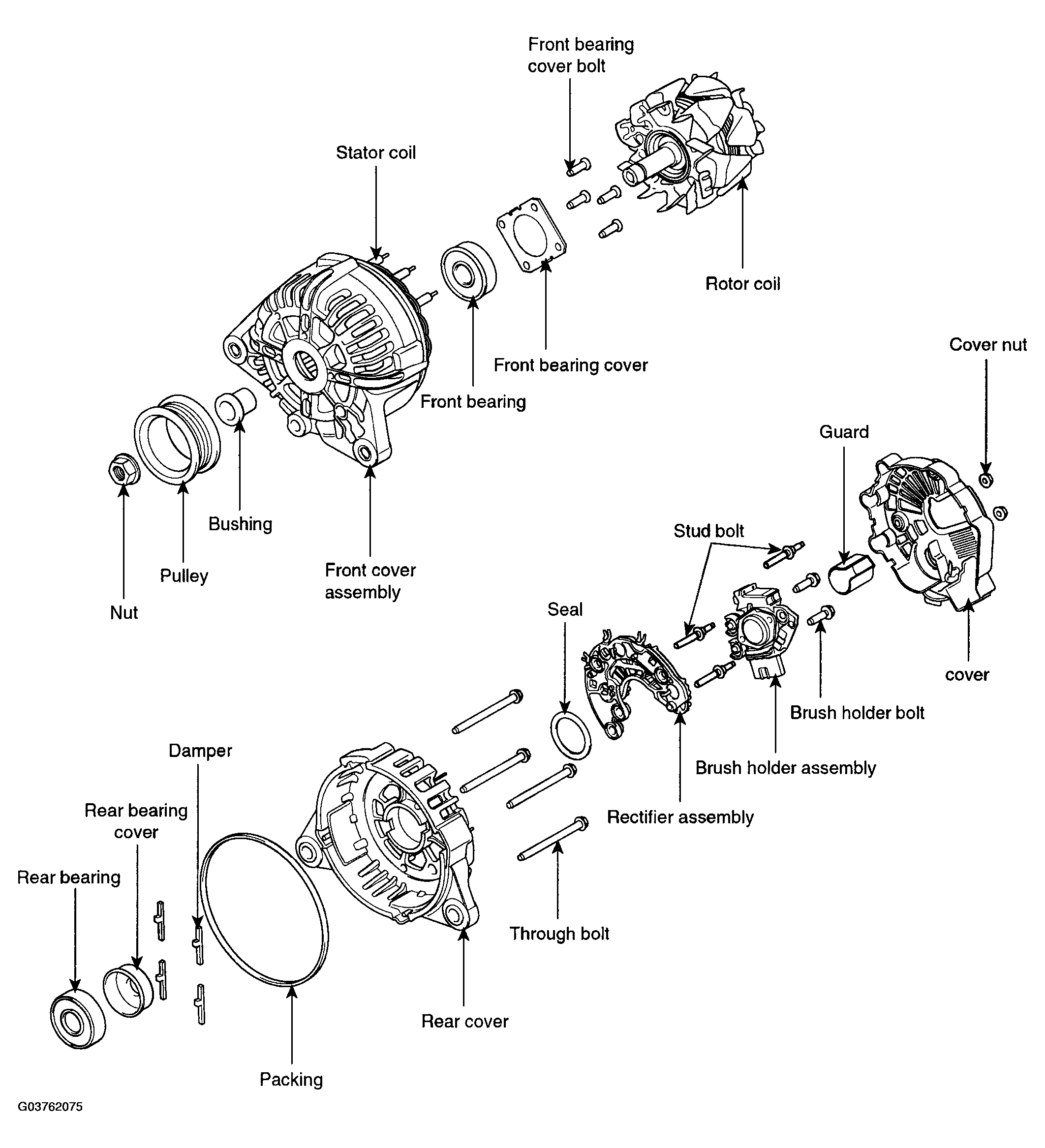

Fig 1: Identifying Gasoline Components (2.7L)

G03762075

Courtesy of HYUNDAI MOTOR CO.
