Tucson GLS, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System (2.0L)
>>
CVVT Oil Control Valve (OCV)
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

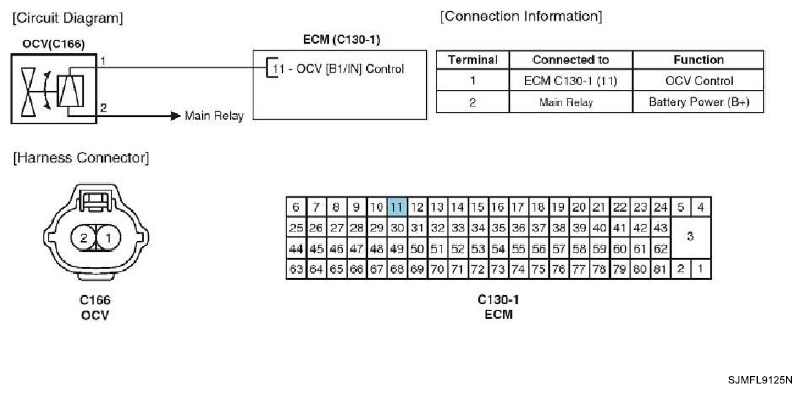

Fig 1: CVVT Oil Control Valve Circuit Diagram
