Components Location

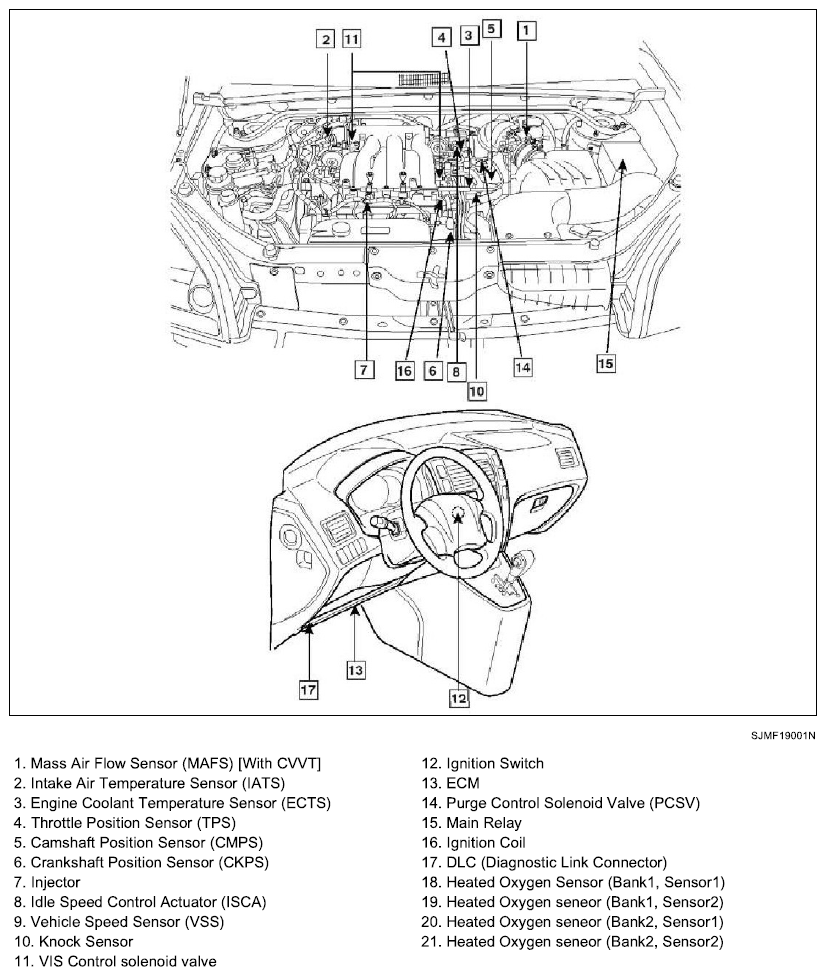

Fig 1: Engine Control System Components Location (1 Of 4)

Courtesy of HYUNDAI MOTOR CO.

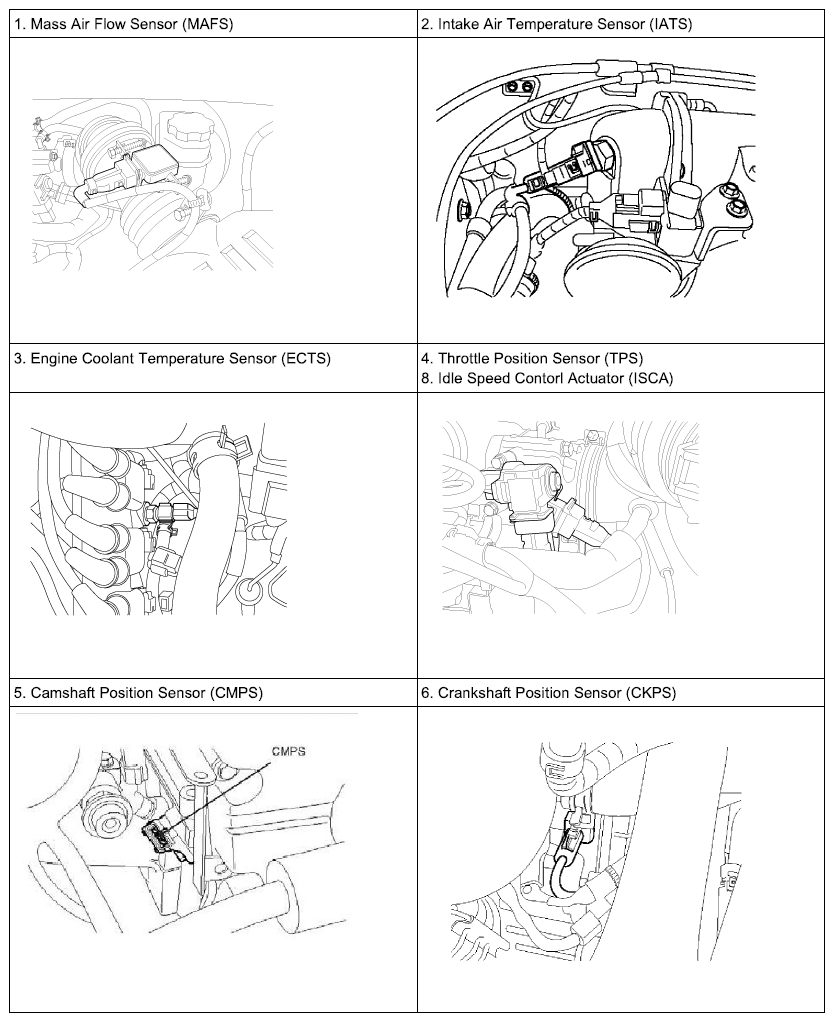

Fig 2: Engine Control System Components Location (2 Of 4)

Courtesy of HYUNDAI MOTOR CO.

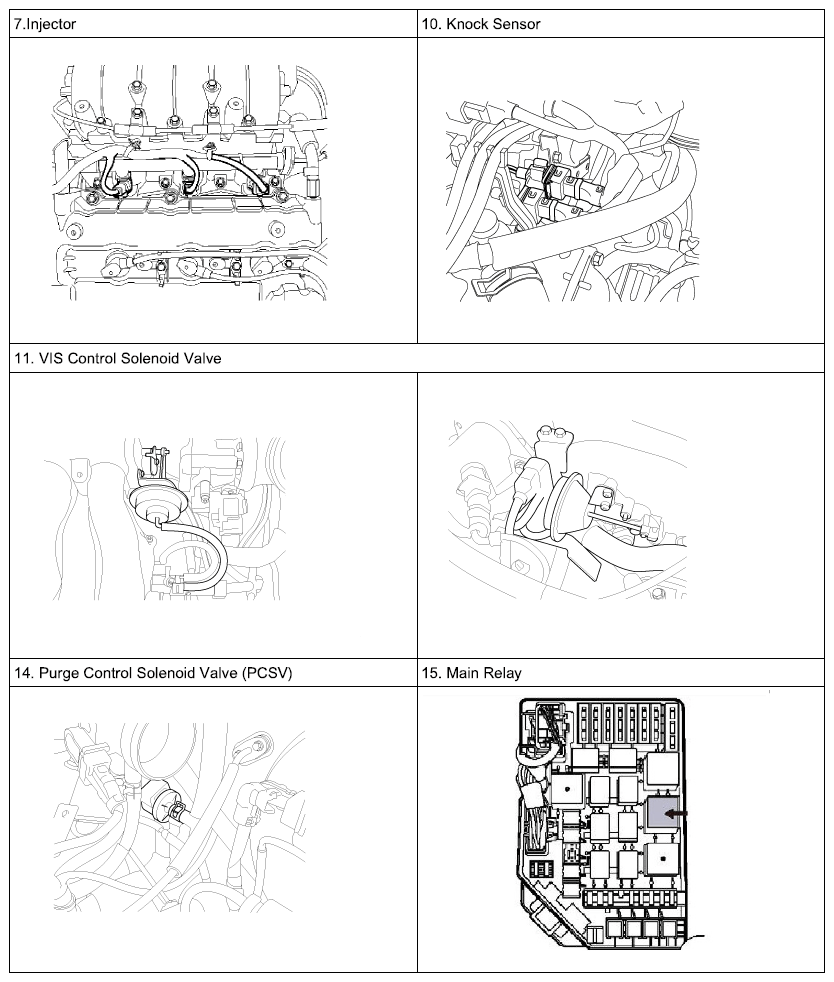

Fig 3: Engine Control System Components Location (3 Of 4)

Courtesy of HYUNDAI MOTOR CO.

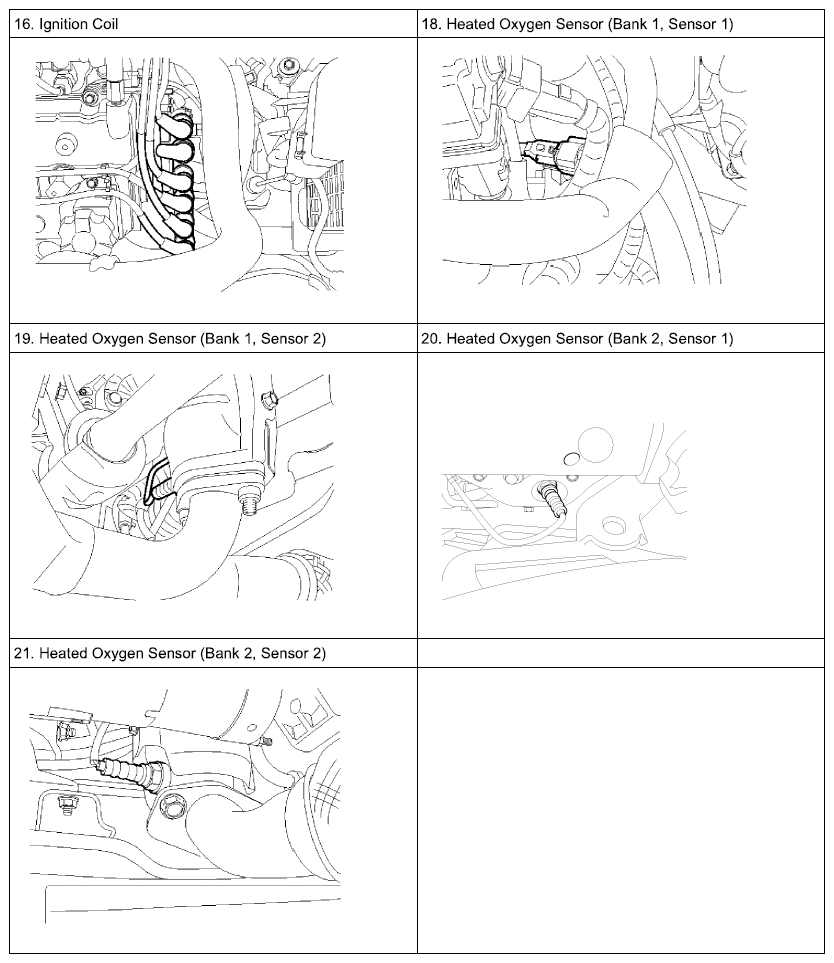

Fig 4: Engine Control System Components Location (4 Of 4)

Courtesy of HYUNDAI MOTOR CO.
