Memory Positioning Module: Testing and Inspection





Inspection

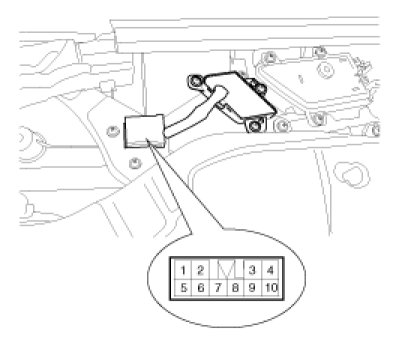

1. Remove the IMS control switch.

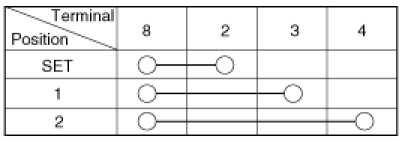

2. With the power IMS control switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the IMS control switch.
