Memory Positioning Switch: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

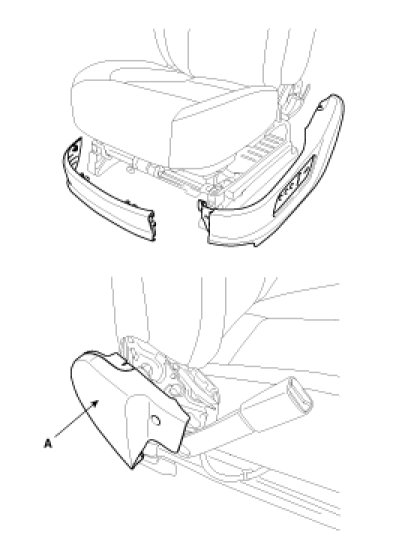

2. Remove the seat front cover.

3. After loosening the mounting screws and clip, then remove the recliner cover (A).

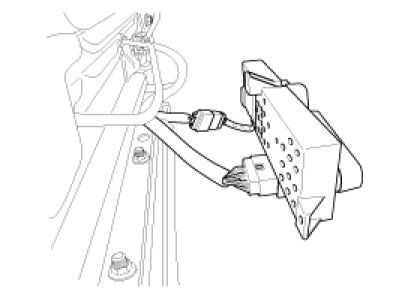

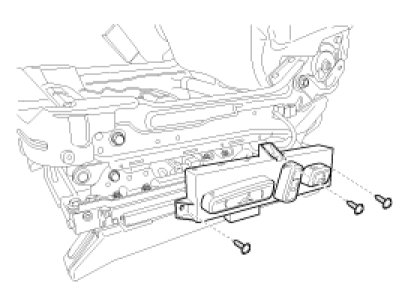

4. Loosen the power seat control switch screws(3EA), then remove the connectors (2EA).










Installation

1. Connect the connectors and reassemble the power seat control switch.
2. Reassemble the recliner cover and seat front cover.
