Home >> Hyundai >> 2009 >> Veracruz AWD V6-3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Memory Positioning Systems >> Memory Positioning Module >> IMS (Integrated Memory
April 5, 2026: LEMON Manuals is launched! Read the announcement.

IMS (Integrated Memory

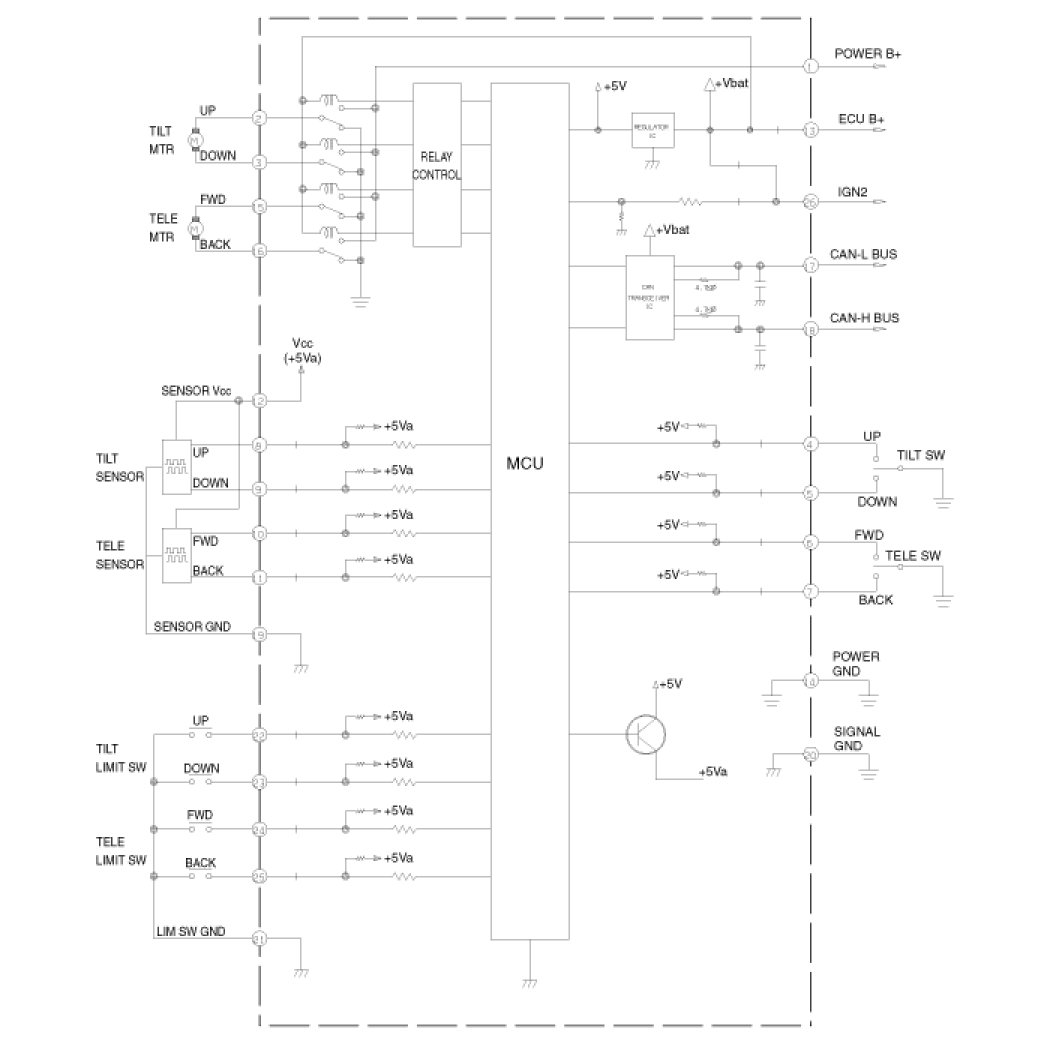

Circuit Diagram
