Repair Procedures

Replacement

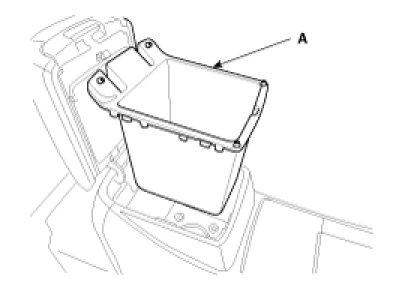

1. Remove the center console armrest box(A).

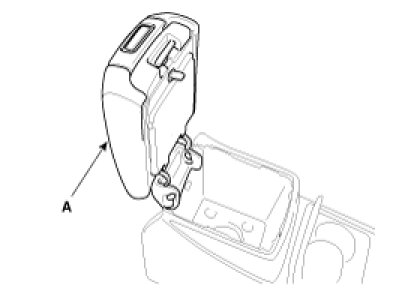

2. After loosening the screw, remove the armrest(B).

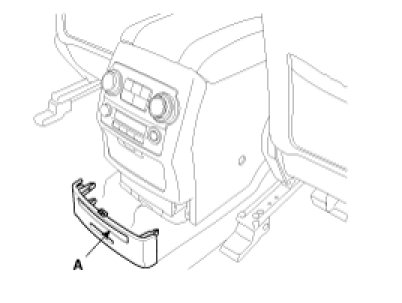

3. Remove the rear cup holder(A).

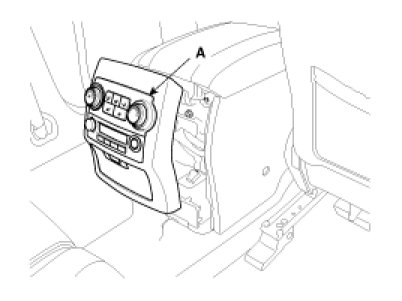

4. Remove the console rear cover(A).

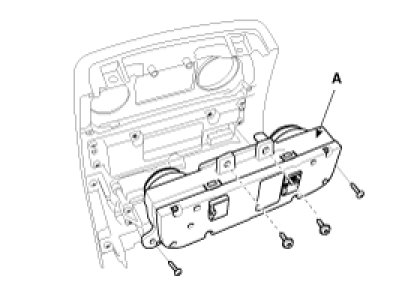

5. Remove the rear blower & A/C controller (A) after loosening the screw from console rear cover.




6. Installation is the reverse order of removal.
