Ignition System: Service and Repair

Removal

Ignition Coil
1. Remove the engine cover.

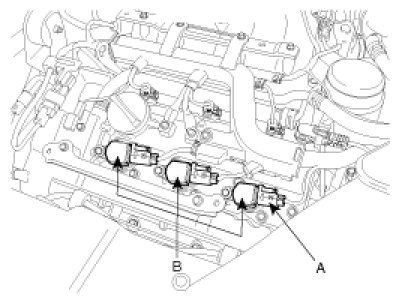

2. Disconnect the ignition coil connector(A).





NOTE:
When removing the ignition coil connector, pull the lock pin(A) and push the clip(B).




3. Remove the ignition coil (B).
4. Installation is the reverse of removal.
