Charging System: Alternator: Removal

  1. Disconnect the battery negative terminal first, then the positive terminal.

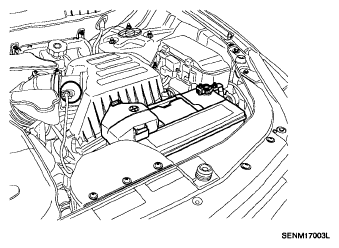

    Fig 1: Identifying Charging System
    G05329612Courtesy of HYUNDAI MOTOR CO.
  2. Disconnect the alternator connector (A), and remove the cable from alternator "B" terminal (B).
  3. Remove the drive belt (C).

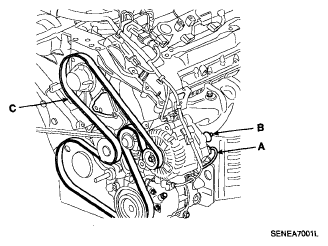

    Fig 2: Identifying Alternator Connector And Drive Belt
    G05329613Courtesy of HYUNDAI MOTOR CO.
  4. Pull out the through bolt and then remove the alternator (A).

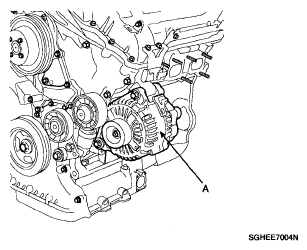

    Fig 3: Identifying Alternator
    G05329614Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
