Filler-Neck Assembly: Removal

  1. Remove the bracket (A) near the fuel tank air filter.

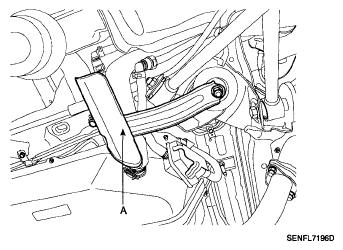

    Fig 1: Identifying Fuel Tank Air Filter Bracket
    G05330168Courtesy of HYUNDAI MOTOR CO.
  2. Disconnect the fuel filler hose (A) and the ventilation hose quick-connector (B).

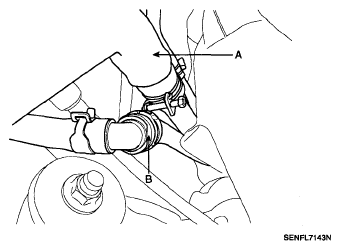

    Fig 2: Identifying Fuel Filler Hose And Ventilation Hose Quick-Connector
    G05330164Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the leveling hose quick-connector (A).

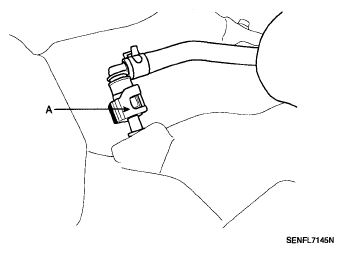

    Fig 3: Identifying Leveling Hose Quick-Connector
    G05330170Courtesy of HYUNDAI MOTOR CO.
  4. Remove the rear-LH wheel & tire, and the inner wheel house.
  5. Remove the bracket mounting nuts (A) and remove the filler-neck assembly.

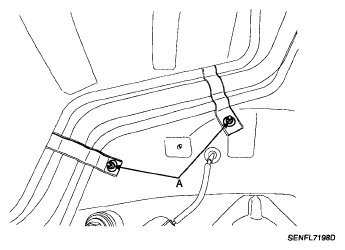

    Fig 4: Identifying Bracket Mounting Nuts
    G05330171Courtesy of HYUNDAI MOTOR CO.
