Sub Fuel Sender: Removal

Preparation
1. Remove the 2nd seat (Refer to SEAT ).

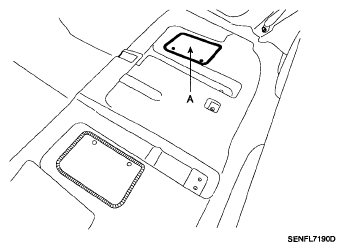

2. Open the carpet for fuel pump (A).

  Fig 1: Identifying Fuel Pump Carpet
  Courtesy of HYUNDAI MOTOR CO.

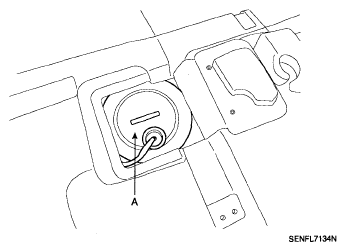

3. Remove the service cover of the fuel pump (A).

  Fig 2: Identifying Fuel Pump Service Cover
  Courtesy of HYUNDAI MOTOR CO.

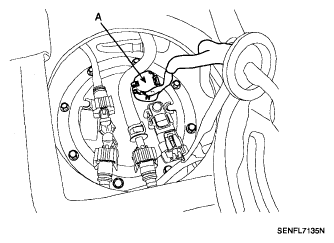

4. Disconnect the fuel pump connector (A).

  Fig 3: Identifying Fuel Pump Connector
  Courtesy of HYUNDAI MOTOR CO.
5. Start the engine and wait until fuel in fuel line is exhausted.
6. After engine stops, turn the ignition switch off.

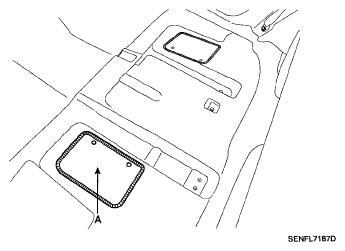

Open the carpet of the sub fuel sender (A).

Fig 4: Identifying Sub Fuel Sender Carpet
Courtesy of HYUNDAI MOTOR CO.

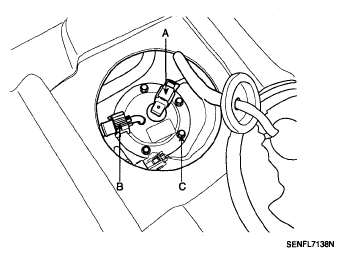

Disconnect the sub fuel sender connector (A) and the suction tube quick-connector (B)

Fig 5: Identifying Sub Fuel Sender Connector And Suction Tube Quick-Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the sub fuel sender from the fuel tank after unfastening the sub fuel sender installation bolts (C).

Fig 6: Identifying Sub Fuel Sender
