Component Location

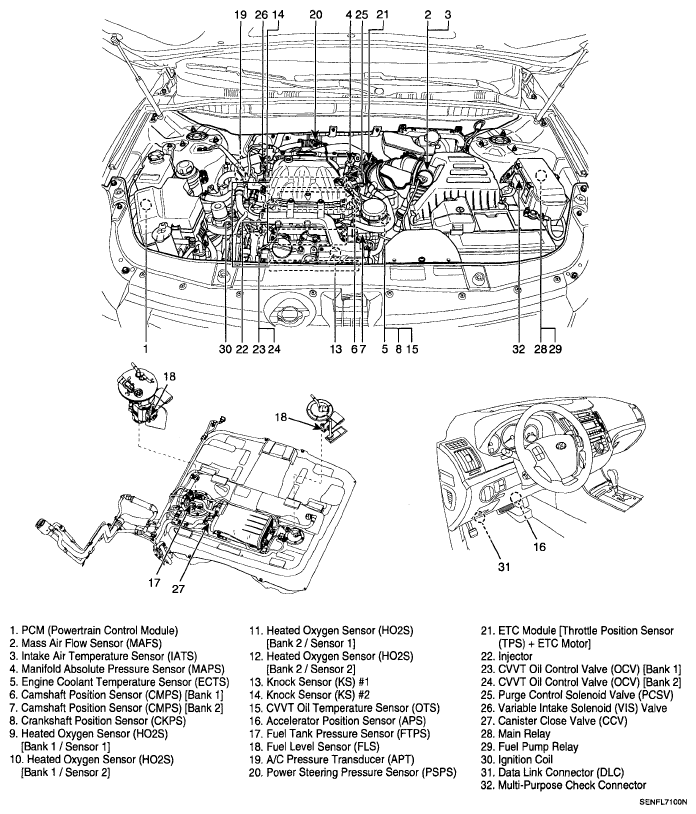

Fig 1: Identifying Fuel System Component Location (1 Of 5)

Courtesy of HYUNDAI MOTOR CO.

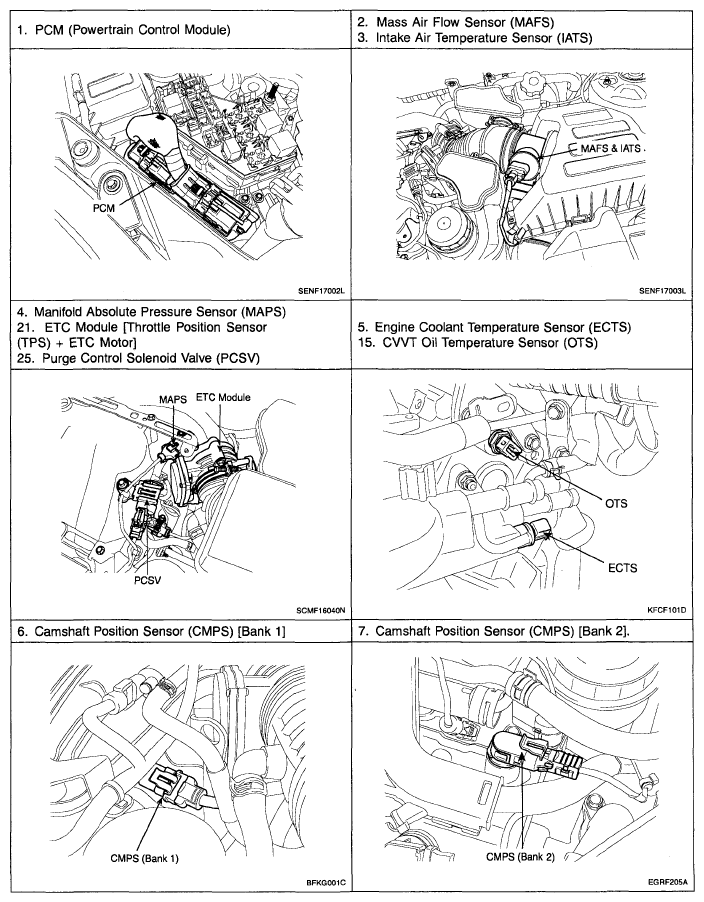

Fig 2: Identifying Fuel System Component Location (2 Of 5)

Courtesy of HYUNDAI MOTOR CO.

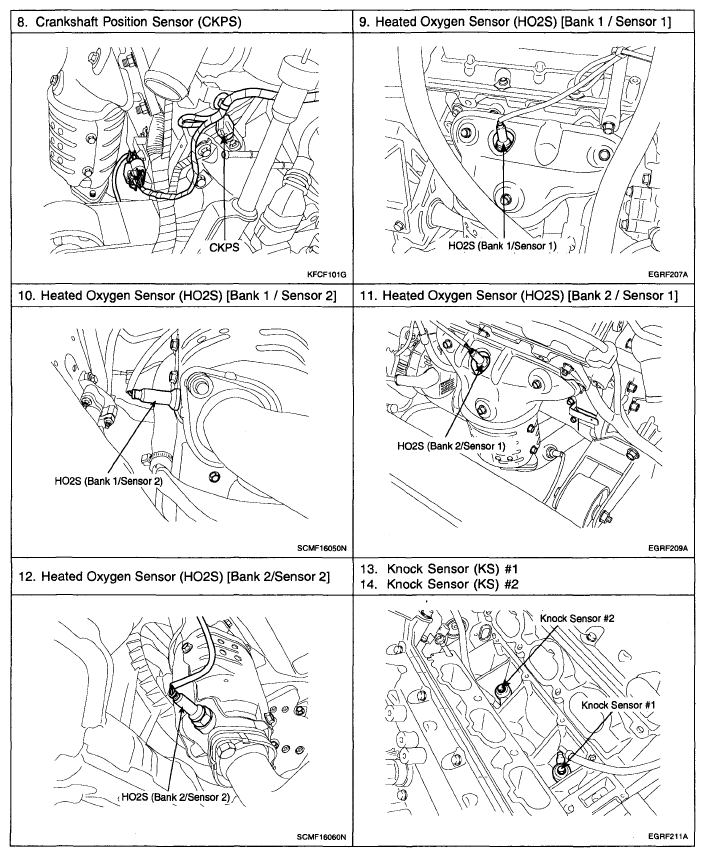

Fig 3: Identifying Fuel System Component Location (3 Of 5)

Courtesy of HYUNDAI MOTOR CO.

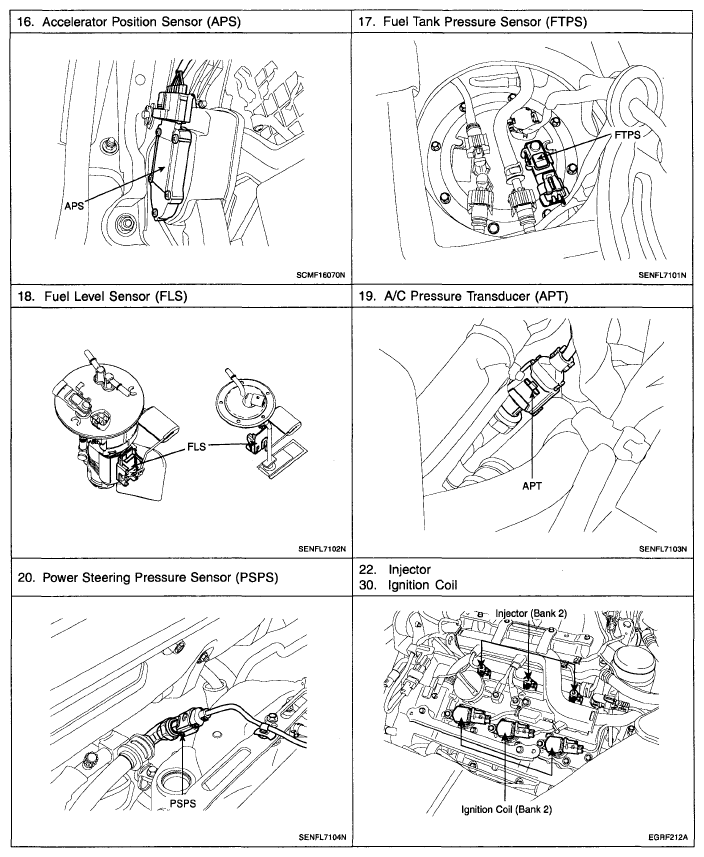

Fig 4: Identifying Fuel System Component Location (4 Of 5)

Courtesy of HYUNDAI MOTOR CO.

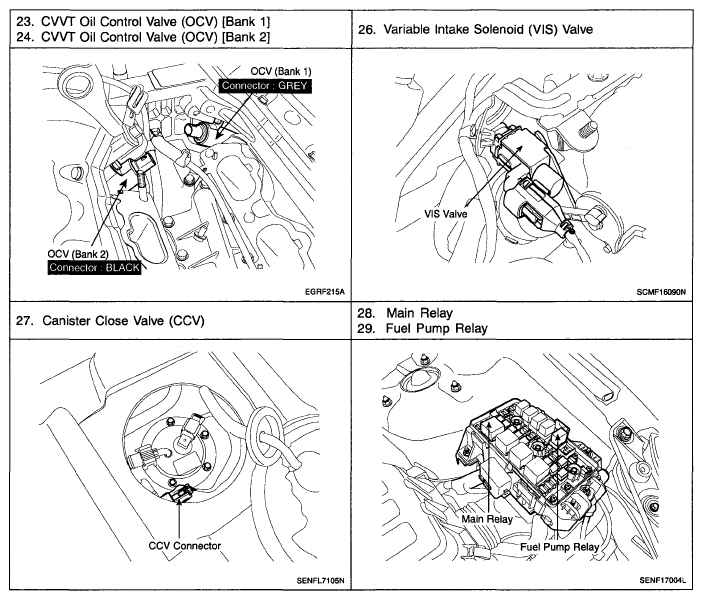

Fig 5: Identifying Fuel System Component Location (5 Of 5)

Courtesy of HYUNDAI MOTOR CO.
