Schematic Diagram

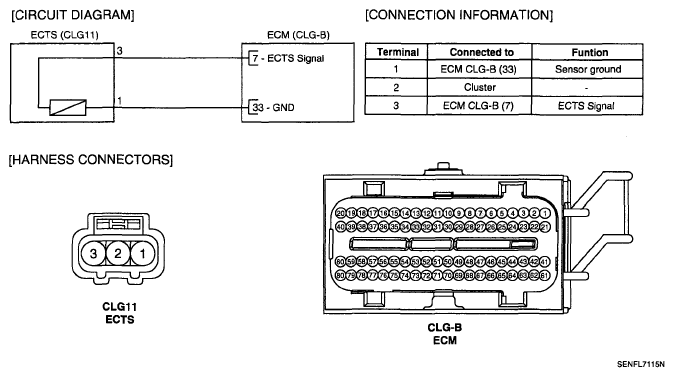

Fig 1: Engine Coolant Temperature Sensor (ECTS) - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
