Engine Control System (Fuel System) (G6DA - GSL 3.8)
>>
Gasoline Engine Control System
>>
Etc (Electronic Throttle Control) System
>>
Inspection
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

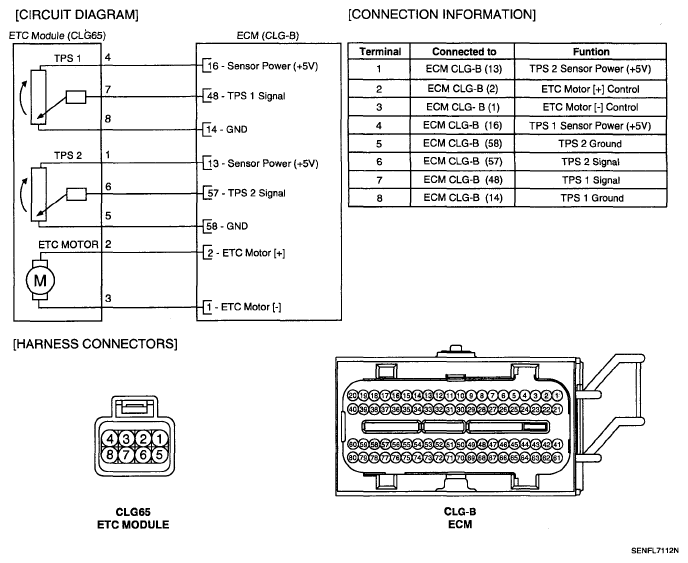

Fig 1: Electronic Throttle Control (ETC) System - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
