Engine Control System (Fuel System) (G6DA - GSL 3.8)
>>
Gasoline Engine Control System
>>
Mass Air Flow Sensor (MAFS)
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

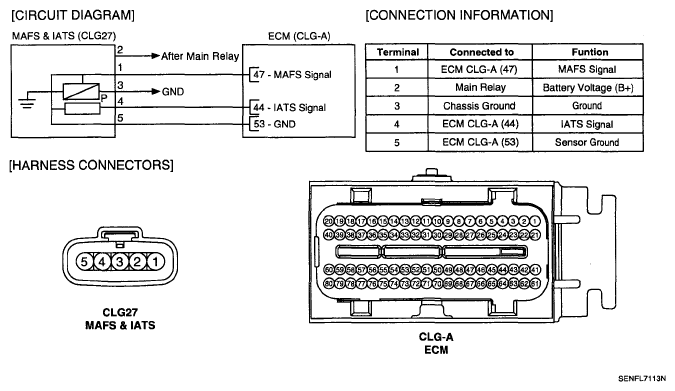

Fig 1: Mass Air Flow Sensor (MAFS) - Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
