Transfer Case: Components

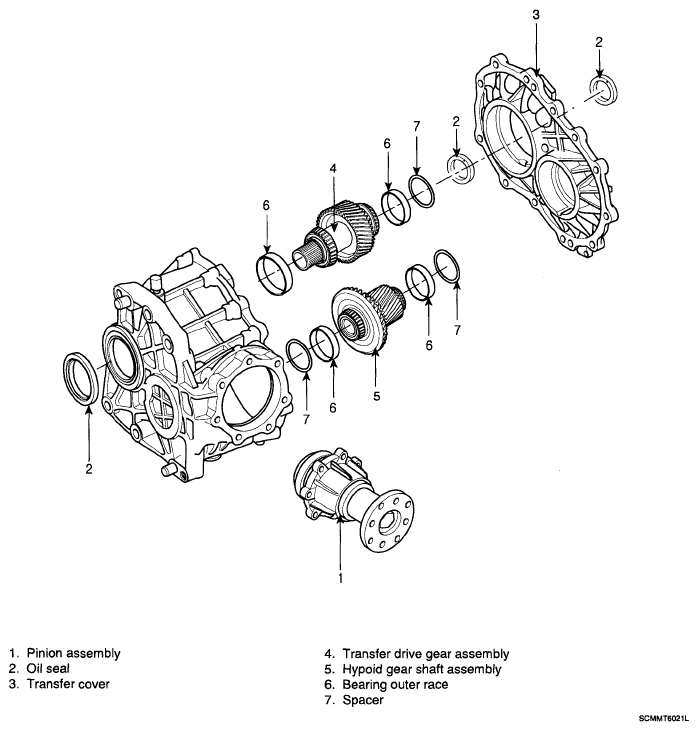

Fig 1: Identifying Transfer Case Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
