Driver Power Window Switch

When checking the anti pinch strip operation, select a vehicle type and "BODY CONTROL MODULE" menu.

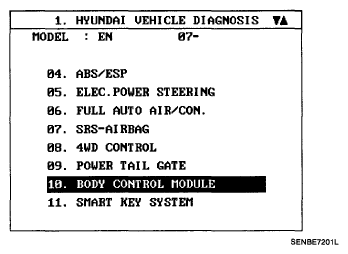

Fig 1: Scan Tool Display - BODY CONTROL MODULE
Courtesy of HYUNDAI MOTOR CO.

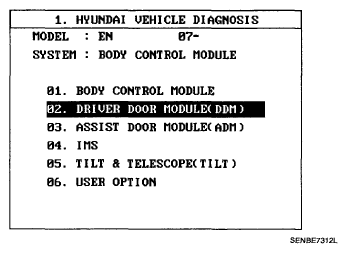

Select "DRIVER DOOR MODULE (DDM)".

Fig 2: Scan Tool Display - DRIVER DOOR MODULE
Courtesy of HYUNDAI MOTOR CO.
Select option "CURRENT DATA".

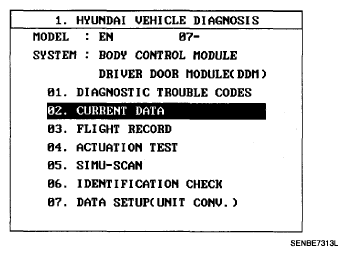

Fig 3: Scan Tool Display - CURRENT DATA
Courtesy of HYUNDAI MOTOR CO.

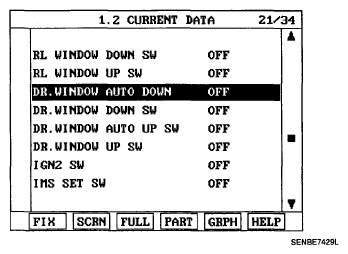

Fig 4: Scan Tool Display - WINDOW AUTO DOWN
Courtesy of HYUNDAI MOTOR CO.
To check the input value of power window switch in force mode, select option "ACTUATION TEST".

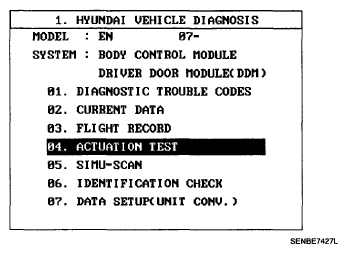

Fig 5: Scan Tool Display - ACTUATION TEST (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

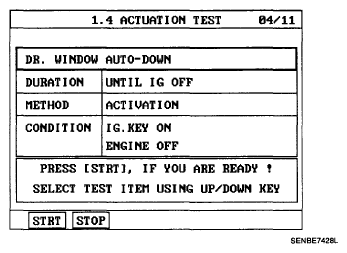

Fig 6: Scan Tool Display - ACTUATION TEST (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.

* Above voltage and numerical value may be different from the real value.
Change the anti pinch strip sensor, if there is no change from OFF to ON during operation.
