Signal Waveform

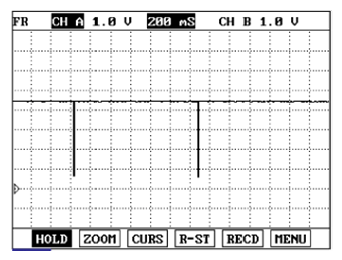

Fig 1: CAN High Communication Waveform
G06803283Courtesy of HYUNDAI MOTOR CO.

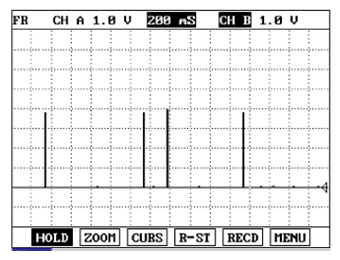

Fig 2: CAN Low Communication Waveform
G06803284Courtesy of HYUNDAI MOTOR CO.
