General Information: Specification

■ Output voltage of power seat slide sensor.

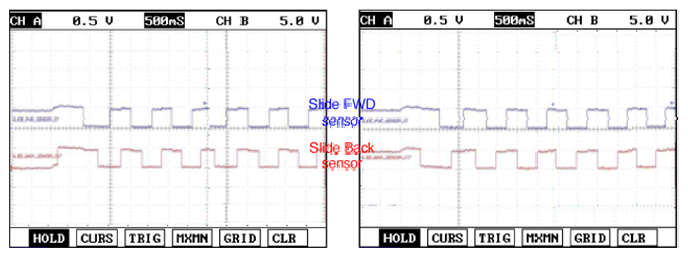

Fig 1: Signal Waveform - power seat Slide Sensor (FWD And BACK)
G06805668Courtesy of HYUNDAI MOTOR CO.
