Components and Components Location (A5HF1)
>>
Components (1)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components (1)

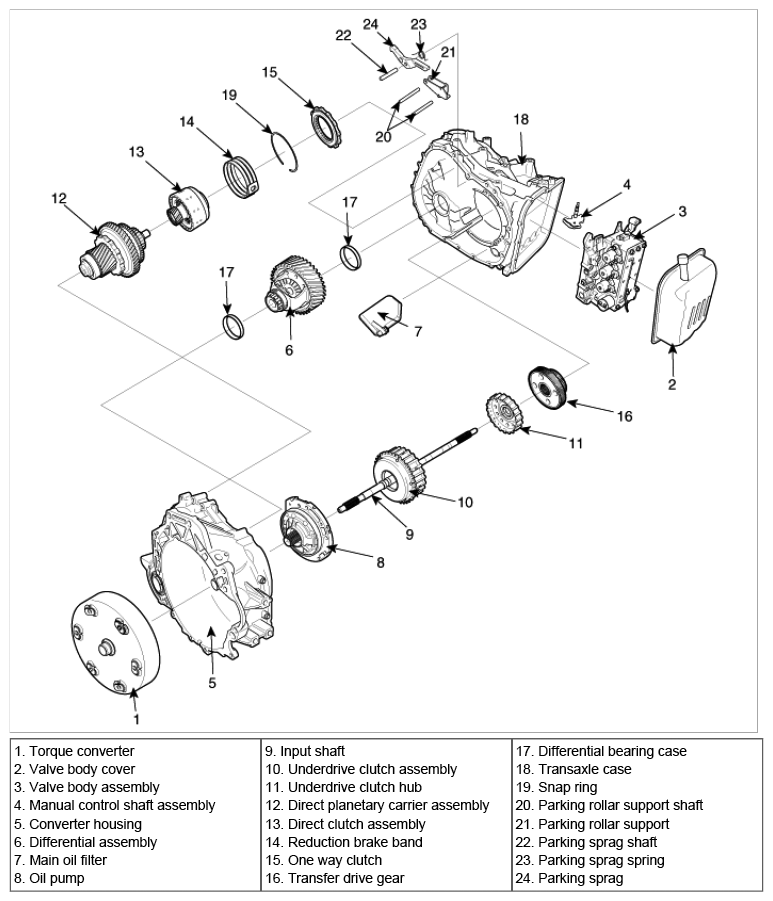

Fig 1: Identifying Automatic Transaxle Components Location (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.
