Schematic Diagram

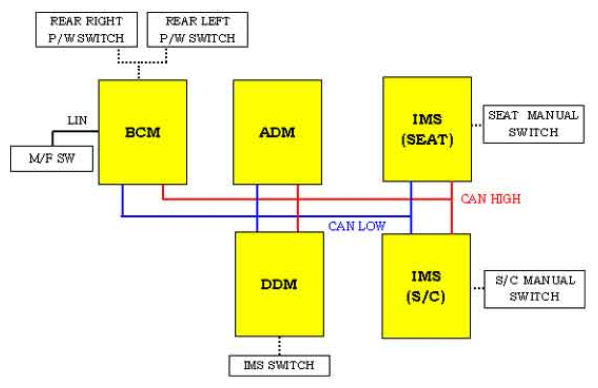

Fig 1: Communication Diagram - Body Control Module
G06803326Courtesy of HYUNDAI MOTOR CO.

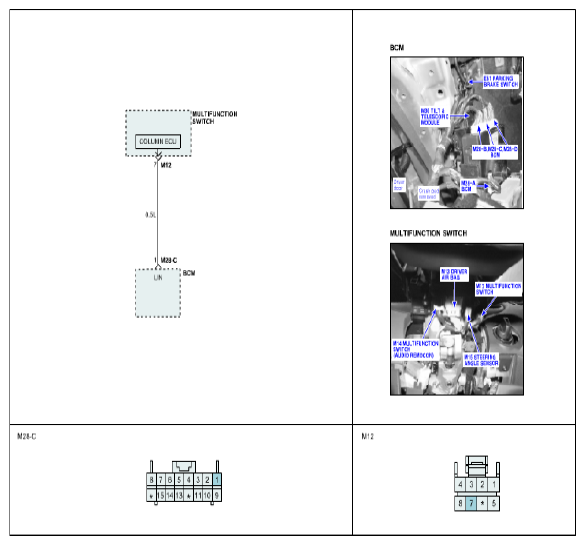

Fig 2: Schematic Diagram - Multifunction Switch
G06803327Courtesy of HYUNDAI MOTOR CO.
