Cowl: Service and Repair





Cowl Top Cover Replacement
1. Remove the wiper .
2. Remove the hood seal weatherstrip

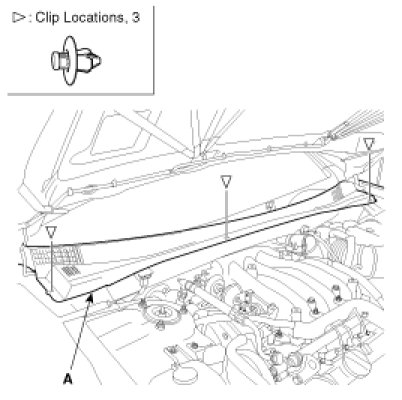

3. Detach the clips, then remove the cowl top cover (A).




4. Installation is the reverse of removal.
