Repair procedures: Inspection

Fig 1: Identifying Ignition Switch Assembly Connector Terminals

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Identifying Ignition Switch Assembly Connector

Courtesy of HYUNDAI MOTOR CO.

Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.
Check for continuity between the terminals.
If continuity is not specified, replace the switch.

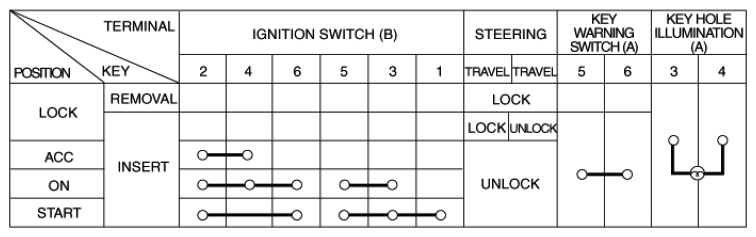

Fig 3: Ignition Switch Continuity Chart
Courtesy of HYUNDAI MOTOR CO.
