Power Window Main Switch

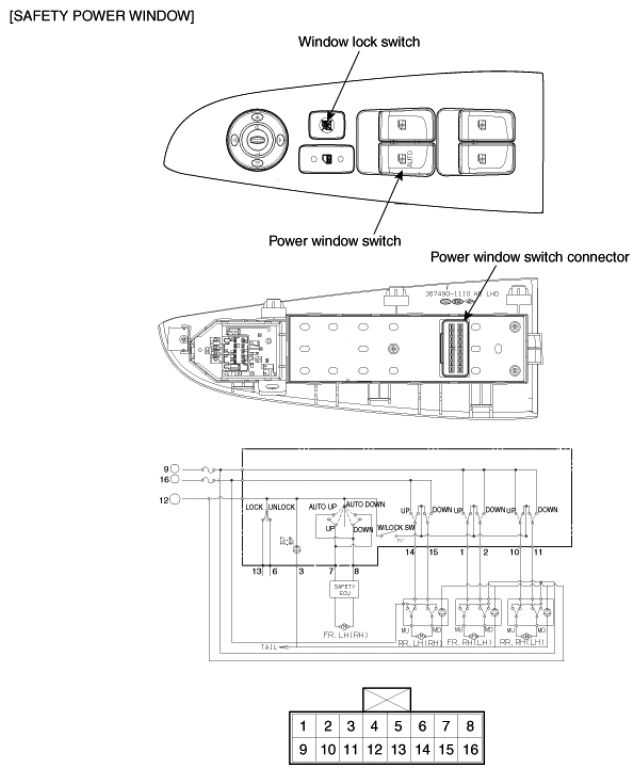

Fig 1: Identifying Power Window Main Switch Components And Circuit - Safety Power Window
G06864457Courtesy of HYUNDAI MOTOR CO.

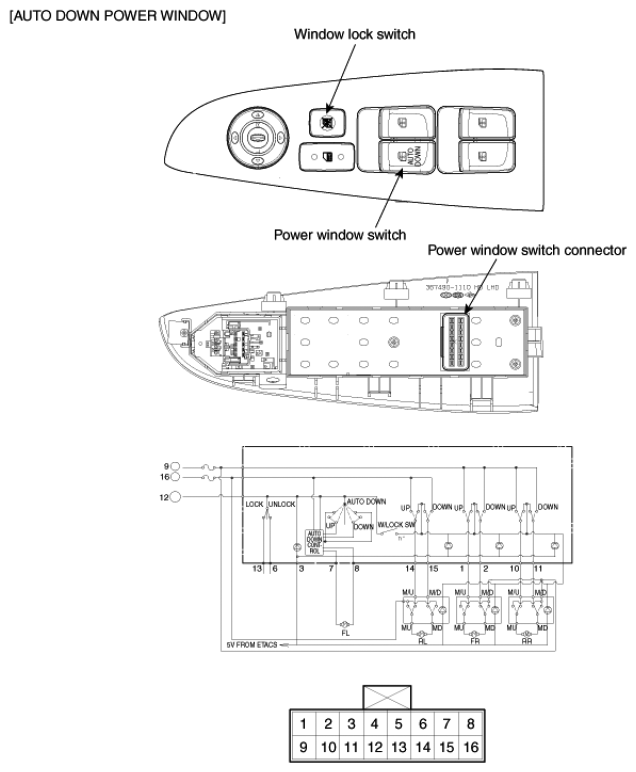

Fig 2: Identifying Power Window Main Switch Components And Circuit - Auto Down Power Window
G06864458Courtesy of HYUNDAI MOTOR CO.
